| Pattern making | |
| This model was generated with solid works as customer requirements for presentation purposes, after which the pattern & core boxes were manufactured for production. |  |
 |

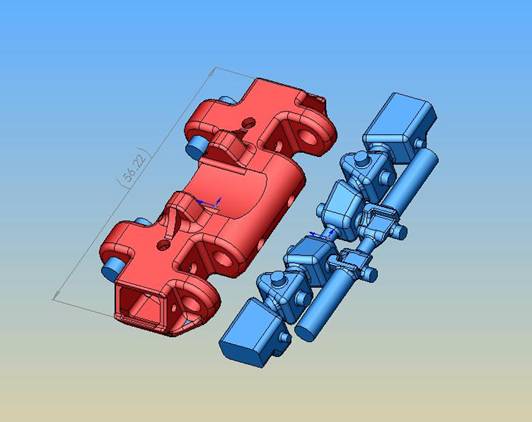

The
top view shows the model of the track pad with the core exploded from the pattern.

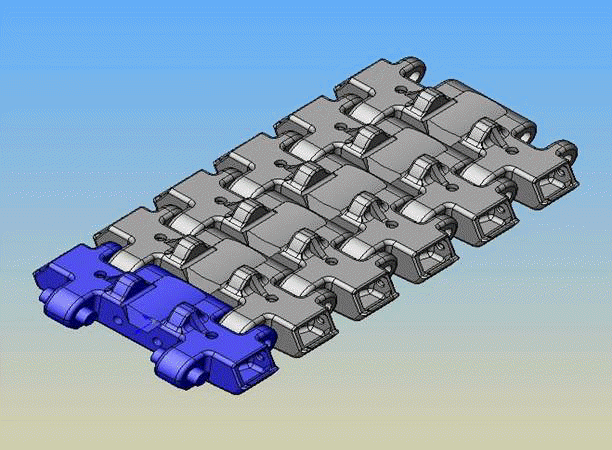

TRACK PAD 1400mm WIDE. |
